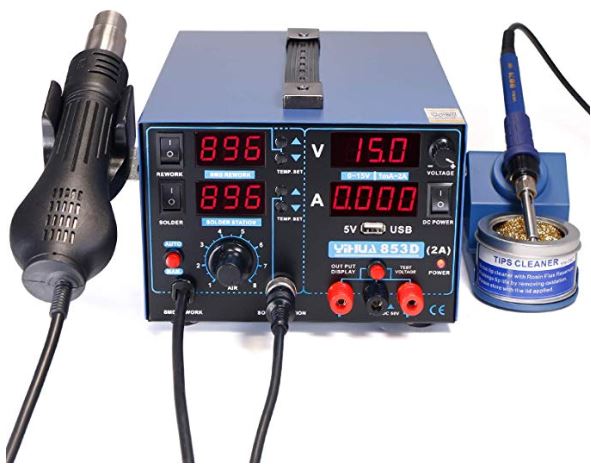

Yihua 853D Hot Air Rework/Solder Station/DC Power Supply
5V USB Charging Port
50V DC Voltage Test Meter
- Hot air gun
- Airflow type: Brushless fan gentle wind
- Air Flow: Fan air flow: ≤120L/min
- Temperature Range: 100°C~480°C/212°F~896°F
- Temperature Stability: ±1.8°F/±1°C (static)
- Display Type: LED Digital Display
- Soldering Iron
- Temperature Range: 200°C~480°C/392°F~896°F
- Temperature Stability: ±3.6°F/±2°C (static)
- Tip of ground voltage: <2mV
- Tip ground impedance:<2ohm
- DC Power Supply
- Output Voltage: DC 0V~15V ±10%
- Load stability: <0.01 ±2mv
- Temperature coefficient: <300ppm/°C
- Ripple dB: <1mvrms(virtual value)
- Output current: 0-2A adjustable
SOLDERING
The Hot Air Rework and Soldering Station provides the possibility for a range of electronics projects. The soldering process involves a super heated iron tip that can melt soldering material in order to flow and adhere between two materials, bridging the gap of conductivity in electronics components. Soldering can also be useful in jewelry and decorative projects.
Using a hot air rework station for electronics repair makes component placement and removal from electronics boards easier, with less risk of damage. This station features an adjustable hot air gun than can be directed at a component to melt pre-existing soldered connections.
*Soldering and hot air rework creates harmful fumes and must be done in a well ventilated area, with proper protective equipment such as safety glasses and heat resistant gloves when necessary.
Soldering Tutorial for Beginners: Five Easy Steps - oneTesla - (3:56)
How to replace SMD LED using hot air soldering station - Г. Тончев
How to Solder properly || Through-hole (THT) & Surface-mount (SMD) - GreatScott! - (11:07)
ELECTRONICS
Electronics projects will generally fit into three categories: Creation, Modification, and Repair, or a mixture of these. Each category requires a process of problem solving, while learning about the logic and physical attributes that make electronics function.
For instance, someone wanting to create may may start with individual electronics components like transistors, capacitors, resistors and knobs to create a simple audio amplifier circuit. Someone interested in modification could swap LED lights for a custom color in their gaming controller. With a steady hand, someone could repair an electronic device's charging capability by desoldering and soldering in a replacement charging port. There is no shortage of possibilities in this area, especially when combining other Makerspace abilities like 3D printing and laser cutting parts for an electronics project.
Why Do Electronics Die - Techquikie - (5:53)
Essential Electronics Components that you will need for creating projects! - GreatScott! - (11:45)
The Learning Circuit - Circuit Basics - element14 presents - (6:37)
How To Solder; A Complete Beginner's Guide
Makerspaces.com's beginner's guide to soldering, including a free 17 page eBook (PDF), "Learn to Solder Guide" "Learning how to solder w/ proper soldering techniques is a fundamental skill every maker should master. In this tutorial, we outline the basics of soldering irons, soldering stations, types of solder, desoldering and safety tips. Whether you’re building a robot or working with Arduino, knowing how to solder will come in handy."
Instructables - Circuits
"Welcome to the world's most awesome playground for all things making. Learn from the largest collection of how to step-by-step circuits projects anywhere." Instructables offers a wide variety of community created circuit based projects, and usually includes information on how and where to source the required materials and parts.
iFixit Repair Guides
"iFixit is a wiki-based site that teaches people how to fix almost anything. Anyone can create a repair manual for a device, and anyone can also edit the existing set of manuals to improve them. Our site empowers individuals to share their technical knowledge with the rest of the world."
Cost
There is currently no cost for use of the electronics and soldering station. This is a guided service run on a "Bring Your Own Material" basis.
*CCL Makerspace staff will provide guidance for use of the machines and material, but is not responsible for the use or misuse of patron purchased materials.
